? Models available with and without Dome Growth Measurement
Maximum Size: up to 307 (83mm)
Range: Pressure: 0-8 bar (0-116 psi)
Dome Growth: 0-12 mm (0-0.47 in)
Electrical Required: 100-240VAC 50-60Hz
Air Pressure Required: Min. 8 bar (116 psi)
(Pressure amplifier available upon request)
Measurement Units: Pressure: bar, psi, kPa
Dome Growth: mm, inches
Output Interface: RS232
Languages: English, German, Spanish, Chinese, others available upon request
Dimensions: 528 mm x 500 mm x 786 mm
(21 in x 20 in x 31 in)
Resolution: Pressure: 0.01 bar (0.145 psi)
Dome growth: 0.01 mm (0.0004 in)
Accuracy: ±0.725 psi (±0.05 bar)

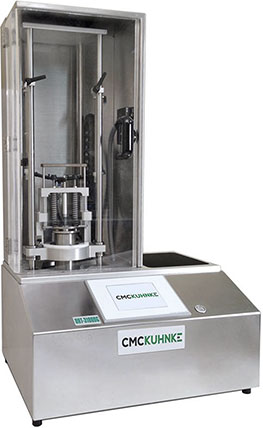

The Dome Reversal Tester is a semi-automated buckle tester designed to determine the pressure at which the bottom dome of a finished beverage can begins to buckle.
Measures: Buckle Test, Buckle Test and Dome Growth with fixed pressure levels, Flex Mode: Buckle Test and Dome Growth Test in 0.05 bar increments - Ideal for R&D Laboratories, Dome Growth Permanent Test - Dome Growth Test only - with fixed pressure levels.
Benefits
? Saves Time:
o Multiple Tests in one unit
o Automatic Data Transfer
o Quick-fill technology - Pressure increases rapidly to preset amount, then increases slowly until buckle.
The Semi-Automatic Combination Seam Gauge provides automated seam thickness and countersink depth measurements, including the option of a 360° scan of seam thickness.
The new 3rd Generation XTS is a stand-alone measurement system that provides non-destructive, double seam inspection for round cans (aluminum or steel).
The ENR-4000?Digital Enamel Rater?is a complete redesign of the industry leading CMC KUHNKE Enamel Rater. It tests the coverage of the enamel coating inside food and beverage cans and ends and it? accurately and quickly measures the Enamel Rating and Lacquer Permeability.
